A300 Attachments
Bumper

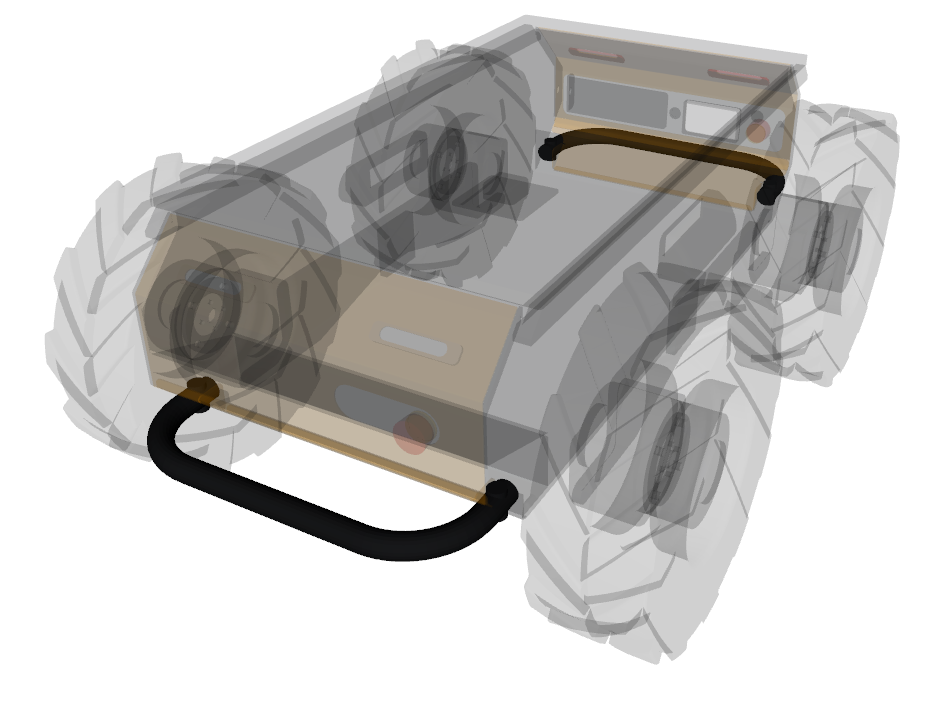

The A300 can have bumpers. By default, we have two bumpers, on the front and rear of the robot.
![]() |
|
The bumpers can be extended by setting the extension
parameter.
Top Plate
The A300 description supports two types of top plates that modify the mounting links of the robot.
Default

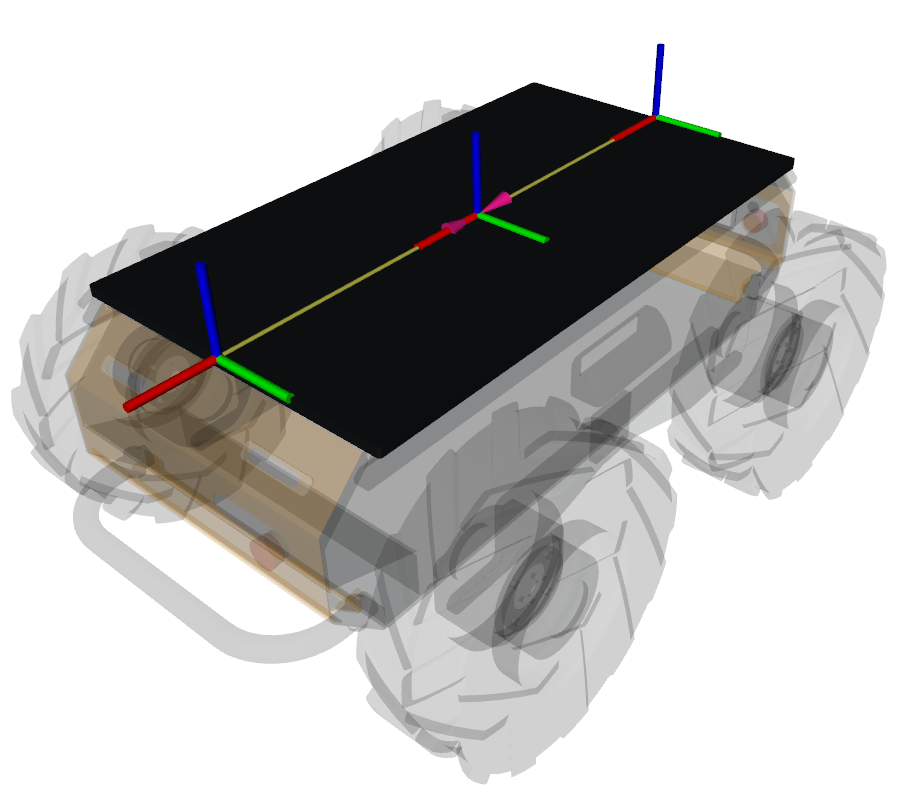

The default top plate is mounted on top of the robot.
![]() |
|
The default top plate has 3 mounting locations that can be used as the parent_link
for sensors and other
attachments:
${name}_front_mount
at the front edge of the plate,${name}_rear_mount
at the rear edge of the plate, and${name}_default_mount
located in the centre of the plate.
PACS

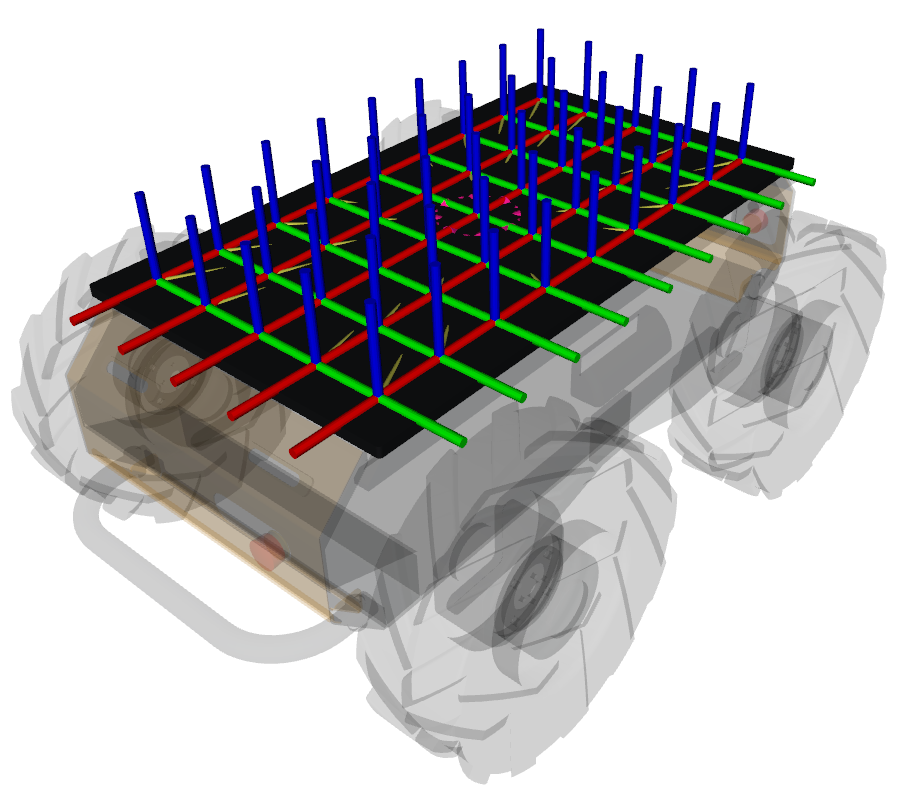

The PACS top is physically identical to the default plate, but adds PACS-compatible mounting links.
![]() |
|
Attach accessories to the top plate mounts by setting the accessory's parent
parameter to one of the grid mounting
locations displayed above. The grid mounting locations span from ${name}_mount_a1
to ${name}_mount_e9
, where the
front left-most location is the a1
mount and the rear right-most location is the e9
mount. The letters correspond
to the columns and the number to the rows.
Wireless Charger
![]() |
|

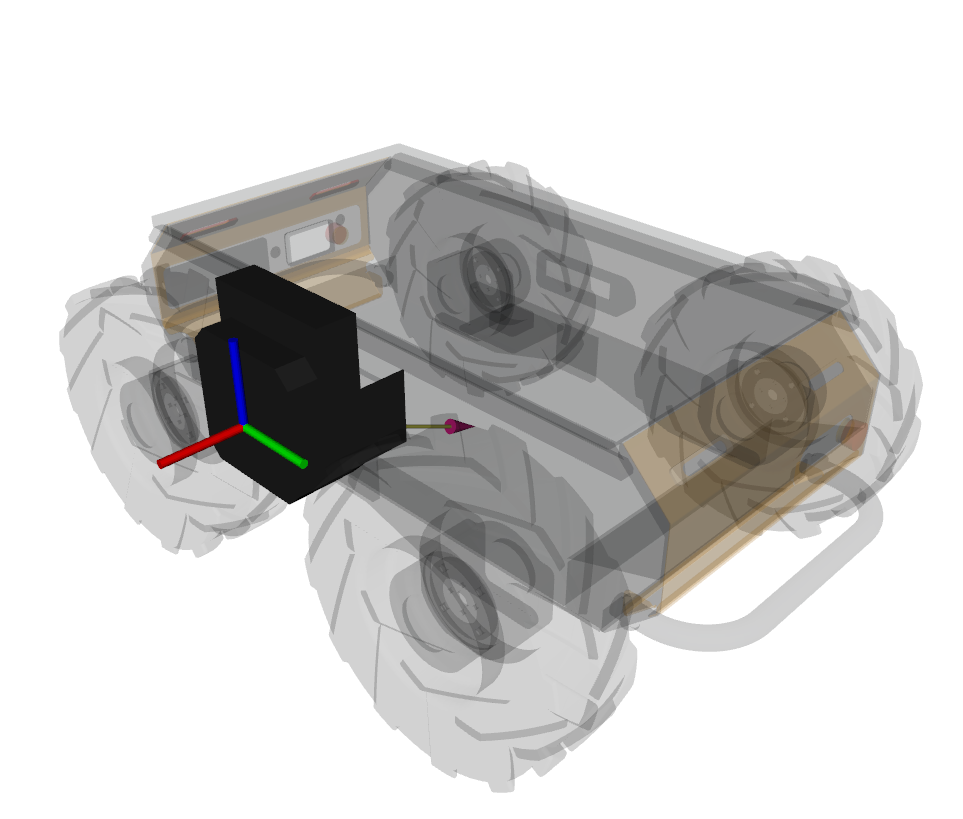

The A300 can optionally be equipped with a wireless charging coil, mounted to the the right side of the robot.
The ${name}_face
link is located in the centre of the charging coil's face, with the X axis pointing outwards.
AMP Attachments
The Husky AMP (Autonomous Mobile Platform) has large enclosure on top to contain additional computers, sensors, and power-distribution equipment and an arch to support additional sensors. These attachments can be added to the A300 just like any other attachment.
AMP Enclosure
If the AMP Enclosure is used, the top plate should be omitted.
![]() |
|

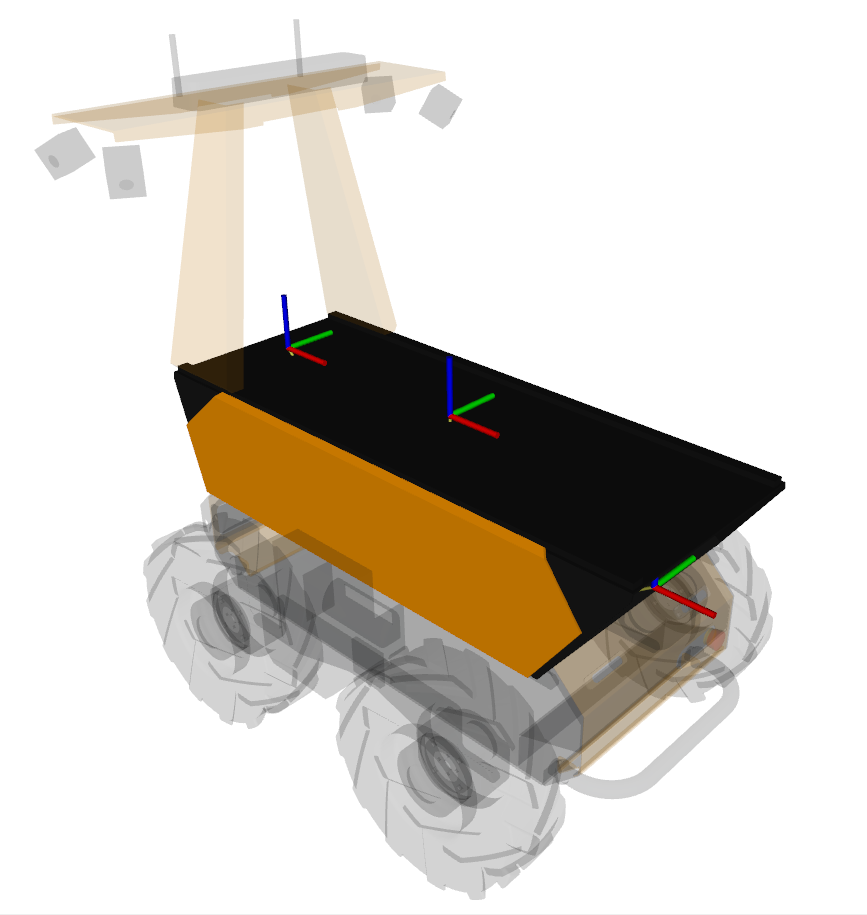

The top of the enclosure features user rails running down the full length, to allow easy mounting
of additional payloads. The a300.amp_enclosure
URDF includes the following links that can be set
as the parent_link
of other attachments:
${name}_center_mount
: the centre of the upper surface of the enclosure. Items mounted to the user rails should measure from this point.${name}_antenna_mount
: the standard parent for the AMP Sensor Arch, located at the rear of the user rails${name}_front_lidar_mount
: located on the front face of the enclosure, this is the default location for the AMP's front-facing 3D lidar${name}_ins_mount
: located on the rear face of the enclosure, this is the default location for the AMP's INS sensor

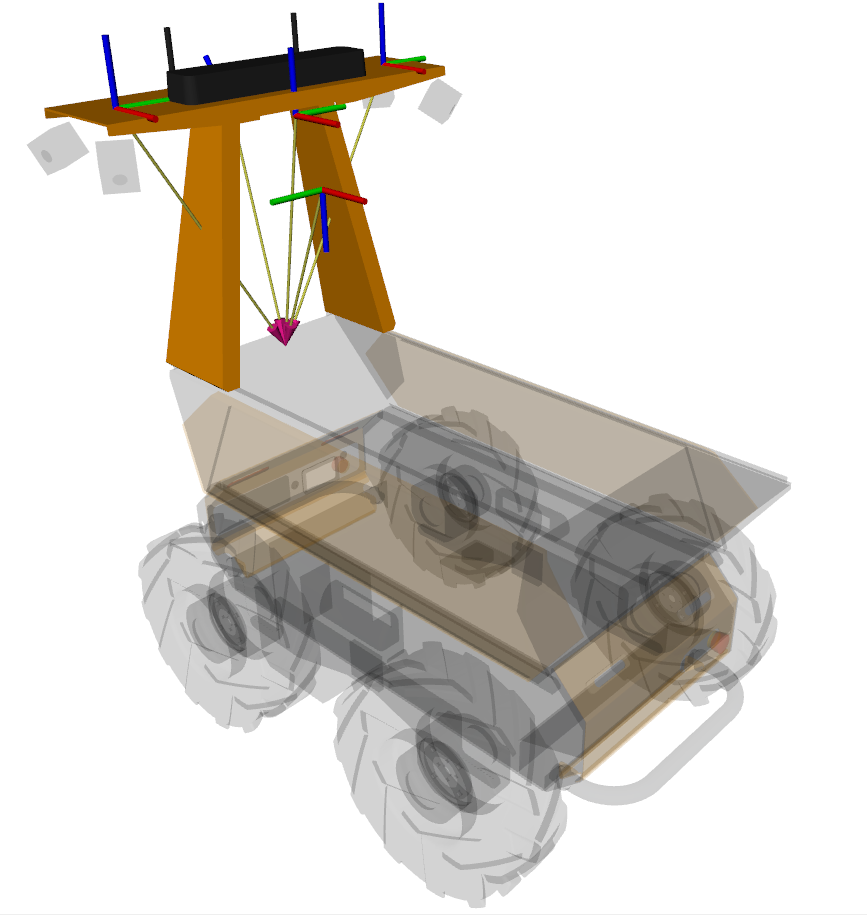

AMP Sensor Arch
The AMP sensor arch is used to attach additional sensors and antennas.
![]() |
|
The AMP sensor arch includes the following links to attach sensors and other accessories:
${name}_front_camera_mount
: located under the centre-top of the arch, this is the default location for the front-facing teleoperation camera${name}_rear_camera_mount
: located under the centre-top of the arch, this is the default location for the rear-facing teleoperation camera${name}_lidar_mount
: default mounting location for a secondary 3D lidar. This mount is only usable when an additional bracket is physically installed on the arch.${name}_left_antenna_mount
: the default mounting location for the GNSS/INS sensor's left antenna${name}_right_antenna_mount
: the default mounting location for the GNSS/INS sensor's right antenna

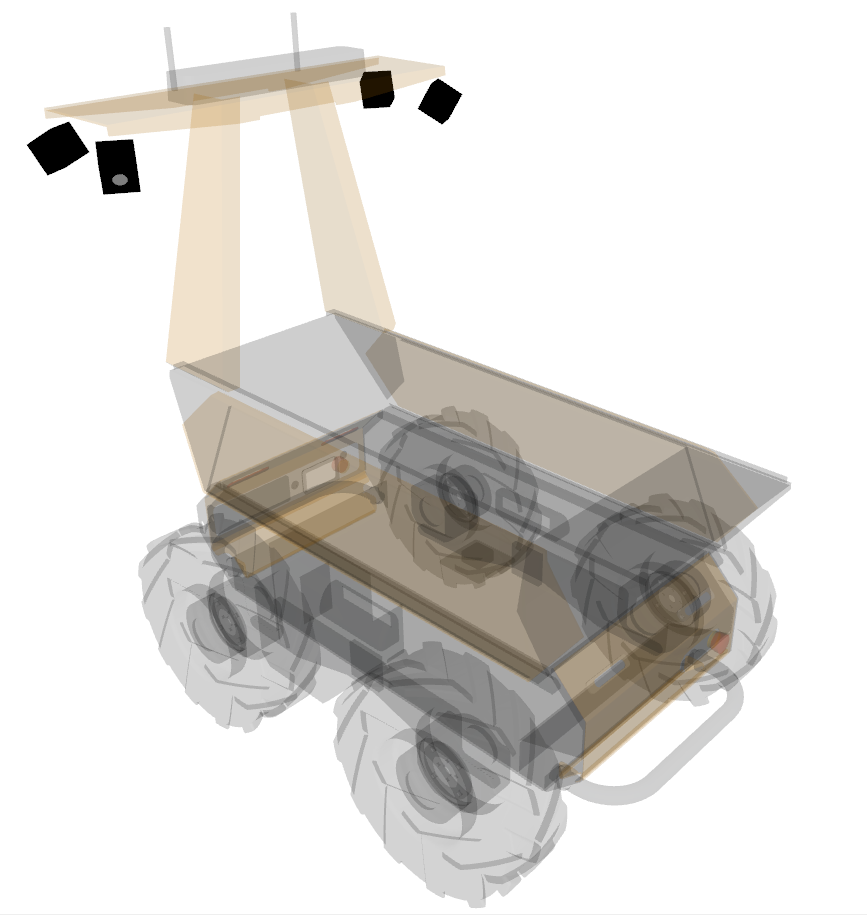

Spotlights
The AMP is equipped with multiple spotlights to assist in teleoperation in dark environments. The models also include simulated light sources when used with Gazebo
![]() |
|
